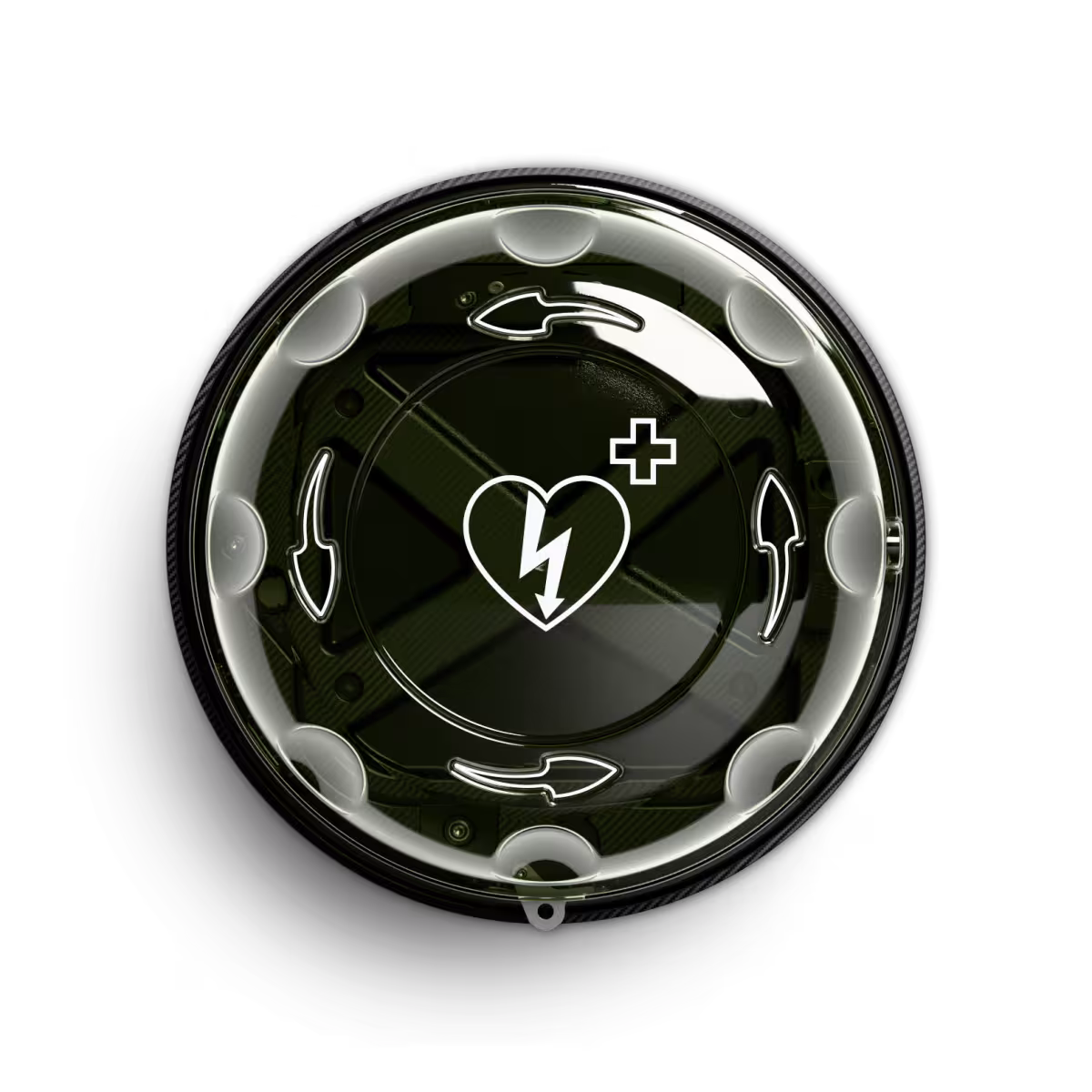

Rotaid Solid Plus AED Wall Cabinet

The Rotaid Solid Plus is built for places where a steel box with a glass door would not last: entrances, parking areas, sports fields, train platforms and plant floors. Its round, clear polycarbonate cover is easy to spot from a distance and comes off with one twist, so a bystander has the AED in hand in seconds. A belt keeps the cover attached to the back, so nobody has to deal with a loose door during a rescue. The plain Solid Plus works indoors and outdoors where it stays above 41°F (5°C). For freezing sites you need the heated model, which we do not list here.

Who It’s For

Public spaces, schools, gyms and workplaces that want a sturdy cabinet that is easy to find, for any AED brand.
Covered outdoor spots in mild climates, such as building entrances, pool decks and sports fields.
Organizations with AEDs spread across a campus or region that want to know at once when a cabinet is opened or an AED reports a fault. For them, the 24/7 Connected cabinet is the choice.

Choosing a Cabinet Type

Solid Plus Alarmed is the standard cabinet. A siren sounds as soon as the cover is twisted off, which calls people to the scene and discourages tampering. It needs no power: the alarm runs on two AA batteries (included). 24/7 Connected adds Rotaid’s connectivity, with its own SIM card on 2G and 4G LTE-M networks and a GPS antenna. It sends email or text alerts when the cabinet is opened, when the AED is taken out or put back, and when it hears the AED’s self-test failure tone. It also tracks pad and battery expiration dates, and if the cabinet is moved, it shows the new location on a map. You manage all of it in Rotaid’s web portal, which several people can share. The 1, 3 or 5 years is the length of the monitoring service and portal access included with the cabinet.

Specifications

Maker	Rotaid (Trisult), supplied through Cardio Partners
Size	18.9 in x 18.9 in x 7.1 in deep (48 x 48 x 18 cm)
Construction	UV-stabilised polycarbonate, carbon-look back plate, double UV-coated transparent cover with a large AED logo, 4 arrows and 8 grip indents, stainless steel hook for a seal or tag
Protection	IP56 water and dust, IK10 impact (20 joules), salt mist tested; no interference with mobile, WiFi or Bluetooth signals
Alarm	Sounds on opening; adjustable to 84 dB or 98 dB; button to pause it; two AA batteries included
Where to use	Indoors, and outdoors where the temperature stays above 41°F (5°C)
Fits	All AED brands and types, per Rotaid
24/7 Connected adds	Built-in SIM (2G and 4G LTE-M), GPS, email and text alerts, web portal; 1, 3 or 5 years of monitoring service

What’s Included

The cabinet, mounting hardware, an installation template and the manual. The Solid Plus Alarmed includes the alarm batteries, and the 24/7 Connected cabinet includes the monitoring term you choose. The AED is not included.

Support & Resources

Not sure which version suits your site, or whether your AED fits? Call us or ask for a quote with your AED model and where the cabinet will hang, and we will confirm the right choice before you order.
